Neff

D95XAM2S0B, Integrated Design Hood

SKU D95XAM2S0B
POA
Out Of Stock - Enquire to Order, Subject to availability
Variant
  • 90 cm wide
  • Installation: Cupboard 90 cm
  • Suitable for ducted extraction and recirculation
  • For recirculated extraction various recirculation kits are available as optional accessories.
Design
  • Flush-fitted installation for a seamless integration in wall cupboards.
  • Space efficient compact design for extra storage possibilities on the hood, up to max. 10 kg storage weight per side.

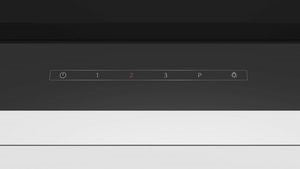

  • Glass panel with touch control for an easy operation and enhanced vapor capture.
  • Extraction and lighting are automatically turned on and off by opening and closing the glass panel.
  • Lighting can also be turned on and off when the glass panel is closed by quick hand touch on control panel.
  • Includes mats for hood storage areas, protectioning against scratches and to help prevent items moving in this space.
Features
  • Electronic controls via Touch control
  • 3 speeds plus intensive
  • SoftLight with dimmer function
  • 3 x 2 W LED lights
  • Colour Temperature: 3500 K
  • Light Intensity: 517 lux
  • Automatic revert setting
  • Automatic intensive revert (6mins)
  • Stainless steel filter covers
  • 2 metal grease filter cassettes
  • Easy to clean smooth surfaces and materials.
Performance
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use460m³/h
  • Intensive749 m³/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
  • Max. normal use:63dB(A) re 1 pW
  • Intensive:73 dB(A) re 1 pW
  • Noise max. Normal Level: Noise, max. speed in normal us: 63 dB dB*
  • With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
  • Extraction rate in recirculation mode: Max. normal use:451m³/h
  • Intensive:652m³/h
  • Noise level in recirculation mode: Max. normal use:67dB(A) re 1 pW
  • Intensive:74 dB(A) re 1 pW
Planning and installation information
  • Installation system: IDH comfort installation
  • Suitable for installation in bottomless wall cupboards.
  • Enclosed spacers for installation in wall cupboards with maximum depth of up to 360mm.
  • For installation in higher wall cupboards chimney extensions are available as optional accessories.
  • Chimney extensions are compatible with the available recirculation kits.
  • Dimensions (HxWxD): 340 x 897 x 298 mm
  • Built-in dimensions (HxWxD): 340 x 860 x 300 mm
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Back-pressure flap: Yes
  • Electrical cable length 1.3 m
  • Please reference the built-in dimensions provided in the installation drawings
Consumption Data
  • Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
  • Average Energy Consumption: 64.7 kWh/year*
  • Blower Efficiency Class: B*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
  • Power rating: 259 W
