Siemens

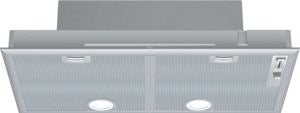

LB75565GB, Canopy cooker hood

SKU LB75565GB
POA
Out Of Stock - Enquire to Order, Subject to availability
Key performance features:
  • Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
  • Max. extraction rate: 638 m3/h
  • Noise max. Normal Level: Noise, max. speed in normal us: 56 dB dB*
Features
  • Slider switch control for extractor speeds and light
  • 3 x power levels plus intensive setting
  • Twin motors
  • 2 x LED spot 2.15W (low volt)
  • Colour Temperature: 3500 K
  • 2 x metal grease filter cassettes
Design

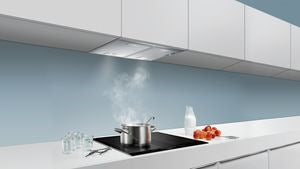

  • For installation under an overhead canopy kitchen unit
  • Canopy hood
  • Mechanical
Performance/technical information
  • Suitable for ducted and re-circulating operation
  • For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use379m³/h
  • Intensive638 m³/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
  • Max. normal use:56dB(A) re 1 pW
  • Intensive:68 dB(A) re 1 pW
  • Power rating: 206 W
  • Light Intensity: 410 lux
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 255-255 x 730 x 380 mm
  • Dimensions recirculating, chimney (HxWxD): 255-255 x 730 x 380mm
  • Built-in dimensions (HxWxD): 255 x 700 x 350 mm
  • Blower Efficiency Class: D*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
  • Average Energy Consumption: 81.2 kWh/year*
Optional accessories
  • Recirculating kit LZ73050
