Bosch

DLN56AC60B, Canopy cooker hood

SKU DLN56AC60B
POA
Out Of Stock - Enquire to Order, Subject to availability
Design:
  • Canopy hood
  • Installation: Cabinet
  • Flush-fitted installation for a seamless integration in wall cupboards.
  • Suitable for ducted or recirculating operation
  • For recirculated extraction various recirculation kits are available as optional accessories.
Core Features:
  • 2 x 1W LED
  • Colour Temperature: 4000 K
  • Light Intensity: 400 lux
  • Capacitor motor
  • 1 metal grease filter(s).
Comfort Features:

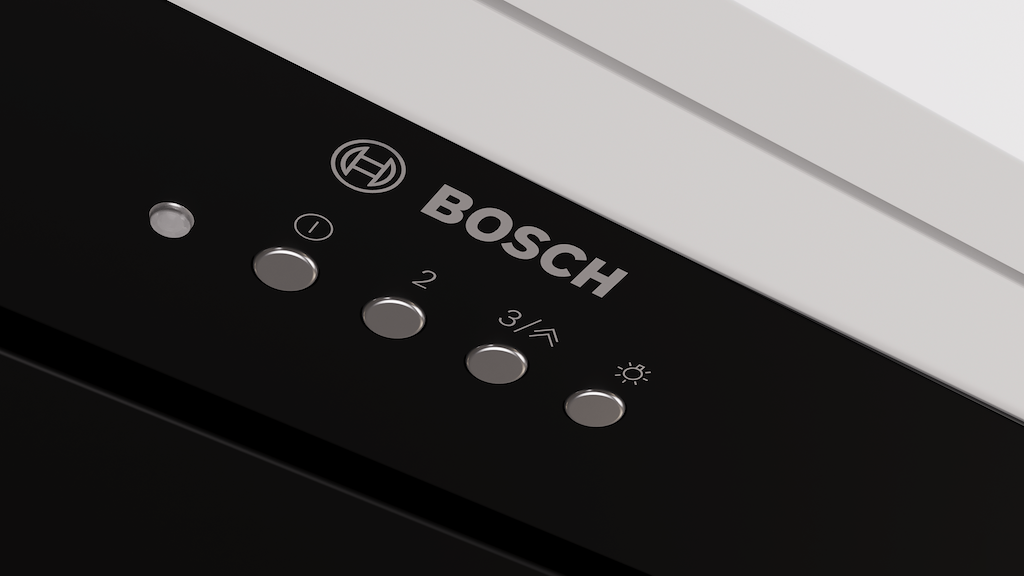

  • Soft touch button control with Electronic display
  • 3 power levels & intensive setting
  • Automatic reset from intensive to normal setting after 6 min
Cleaning Comfort:

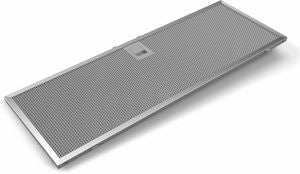

  • Removable metal grease filters dishwasher-safe
  • Easy to clean smooth surfaces and materials.
Performance Exhaust:
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 295 m3/h; noise level 50 dB (A) re1pW Speed 2: extraction rate 445 m3/h; noise level 59 dB (A) re1pW Speed 3: extraction rate 570 m3/h; noise level 66 dB (A) re1pW Intensive 1: extraction rate 645 m3/h; noise level 68 dB (A) re1pW

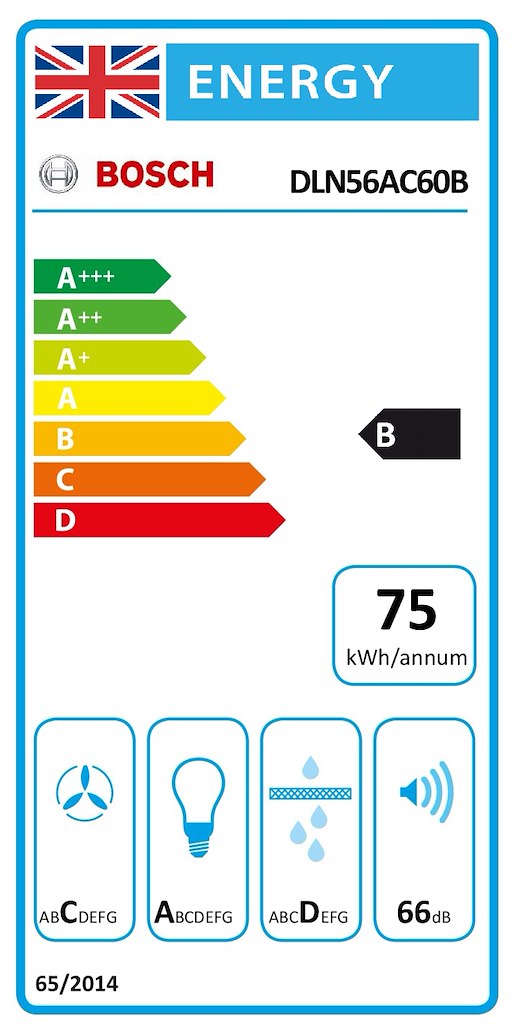

  • Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
  • Average Energy Consumption: 75.2 kWh/year*
  • Blower Efficiency Class: C*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: D*
Performance Recirculation:
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in  recirculation mode with standard recirculation kit (available as optional accessory): Speed 1: extraction rate 230 m3/h; noise level 62 dB (A) re1pW Speed 2: extraction rate 330 m3/h; noise level 69 dB (A) re1pW) Speed 3: extraction rate 400 m3/h ; noise level 72 dB (A) re1pW) Intensive Speed 1: extraction rate410 m3/h; noise level 74 dB (A) re1pW)
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Clean Air plus recirculation kit, for chimless installation (available as optional accessory): Speed 1: extraction rate 280 m3/h ; noise level 56 dB (A) re1pW Speed 2: extraction rate 430 m3/h ; noise level 69 dB (A) re1pW) Speed 3: extraction rate 560 m3/h ; noise level 69 dB A) re1pW) Intensive Speed 1: extraction rate 628 m3/h ; noise level 72 dB (A) re1pW)
Technical Information and Sustainability:
  • Consumption data:
  • Power rating: 252 W
  • Voltage: Nominal voltage: 220 - 240 V
  • Sustainability:
  • Environmentally friendly packaging
  • Available odour filter as regenerative Long Life filter with 10 years lifetime
Planning and Installation Information:
  • Dimensions (HxWxD): 345 x 520 x 282 mm
  • Dimensions recirculating (HxWxD): 345-345 x 520 x 282 mm
  • Built-in dimensions (HxWxD): 345 x 496 x 264 mm
  • Please reference the built-in dimensions provided in the installation drawings
  • Electrical cable length 1.5 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Back-pressure flap: Yes
